一、概述
SK型蔬菜烧烤生产线广泛应用于各种蔬菜的烧烤加工,可与国内外各类速冻设备配套使用,生产各类烧烤速冻蔬菜产品。

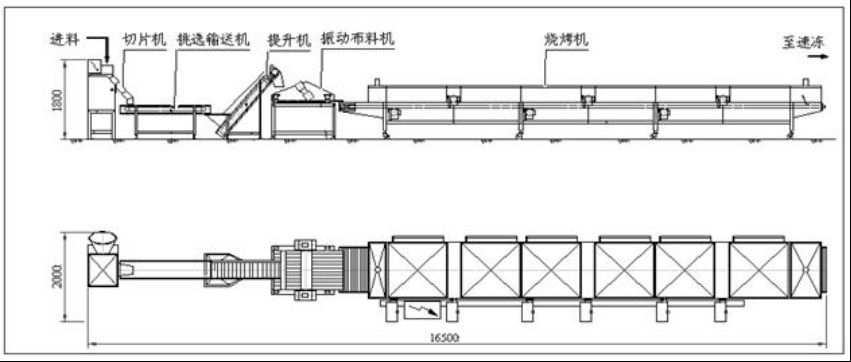

SK型蔬菜烧烤生产线由切片机、挑选输送机、提升机、振动布料机、烧烤机、振动分级机等组成,可用于茄子, 南瓜, 辣椒,蘑菇,土豆,红萝卜,大蒜,葱,蕃茄,西红柿等各类蔬菜的烧烤处理。
二、SK型蔬菜烧烤生产线设备特点:
1.设计上吸取了21世纪国内外最先进的设备并进行优化组合。
2.产品为全不锈钢制作,符合出口食品加工卫生标准。
3.该生主产线自动化程度高,避免交叉污染。
4.采用电或燃油、天燃汽等高温烧烤,温度在350-390℃之间,调温,调速,自动控温,
以适合各种蔬菜烧烤之最佳效果。
5.设备可转弯布置,以适合各种用户需要。
三、主要技术参数(用电)
性 能 / 型 号 | 产量Kg/h 以茄子为例 | 装机功率 KW | 外形尺寸 长X宽X高 | 烧烤室 长X宽X高 | 烧烤带宽 mm | 烧烤温度℃ | 处理时间min |
SKD- 30 | 30 | 36 | 8500X1500X1800 | 3000x1100x900 | 500 | 350-390 | 2-10 |
SKD- 60 | 60 | 70 | 8500X1800X1800 | 3000x1600x900 | 1000 | ||
SKD-100 | 100 | 100 | 10000X1800X1800 | 4500x1600x900 | 1000 | ||
SKD-150 | 150 | 120 | 11500X1800X1800 | 6000x1600x900 | 1000 | ||
SKD-200 | 200 | 150 | 12700X1800X1800 | 7200x1600x900 | 1000 | ||
SKD-250 | 250 | 170 | 13900X1800X1800 | 8400x1600x900 | 1000 | ||
SKD-300 | 300 | 195 | 13200X1800X1800 | 7700x1800x900 | 1200 | ||
SKD-350 | 350 | 220 | 14200X1800X1800 | 8700x1800x900 | 1200 | ||
SKD-400 | 400 | 250 | 15000X1800X1800 | 9500x1800x900 | 1200 | ||
SKD-500 | 500 | 280 | 15000X2100X1800 | 9500x2100x900 | 1500 | ||
SKD-540 | 540 | 300 | 16500X2100X1800 | 11000x2100x900 | 1500 |
四、主要技术参数(用燃油或天燃气)
性 能 / 型 号 | 产量Kg/h 以茄子为例 | 装机功率 KW | 油气消耗KCal/h | 外形尺寸 长X宽X高 | 烧烤室 长X宽X高 | 烧烤带宽 mm | 烧烤温度℃ | 处理时间min |
SKY- 30 | 30 | 3 | 50000 | 8500X1500X1800 | 3000x1100x900 | 500 | 350-390 | 2-10 |
SKY- 60 | 60 | 5 | 100000 | 8500X1800X1800 | 3000x1600x900 | 1000 | ||
SKY-100 | 100 | 8 | 135000 | 10000X1800X1800 | 4500x1600x900 | 1000 | ||
SKY-150 | 150 | 8 | 160000 | 11500X1800X1800 | 6000x1600x900 | 1000 | ||
SKY-200 | 200 | 9 | 200000 | 12700X1800X1800 | 7200x1600x900 | 1000 | ||
SKY-250 | 250 | 9 | 230000 | 13900X1800X1800 | 8400x1600x900 | 1000 | ||
SKY-300 | 300 | 10 | 260000 | 13200X1800X1800 | 7700x1800x900 | 1200 | ||
SKY-350 | 350 | 11 | 290000 | 14200X1800X1800 | 8700x1800x900 | 1200 | ||
SKY-400 | 400 | 11 | 330000 | 15000X1800X1800 | 9500x1800x900 | 1200 | ||
SKY-500 | 500 | 14 | 370000 | 15000X2100X1800 | 9500x2100x900 | 1500 | ||
SKY-540 | 540 | 14 | 400000 | 16500X2100X1800 | 11000x2100x900 | 1500 |
